4mm 6mm 0.6/1KV solar pv cable with Tinned copper conductor, XLPO insulation, LSZH sheath
which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.
It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.
PV1-F DC1500V Table of cable technical parameters
|
mm2
Number of cores × nominal cross-sectional area
mm2
|
mm
Nominal insulation thickness
mm
|
mm
Nominal sheath thickness
mm
|
mm
Approximate outer diameter of cable
mm
|
kg/km
Approximate weight of cable
Kg/km
|
Ω/km
Maximum DC resistance at 20ºC
Ω/km
|
|
1×1.5
|
0.6
|
0.6
|
4.2
|
30.3
|
13.7
|
|
1×2.5
|
0.6
|
0.6
|
4.7
|
41.7
|
8.21
|
|
1×4
|
0.8
|
0.7
|
5.9
|
64.2
|
5.09
|
|
1×6
|
0.8
|
0.7
|
6.5
|
84.8
|
3.39
|
|
1×10
|
0.8
|
0.7
|
7.5
|
129.5
|
1.95
|
|
1×16
|
0.8
|
0.9
|
10.0
|
205.0
|
1.24
|
|
1×25
|
1
|
1
|
12.1
|
309.0
|
0.795
|
|
1×35
|
1
|
1
|
14.0
|
412.0
|
0.565
|
|
1×50
|
1
|
1
|
14.1
|
539.6
|
0.393
|
|
1×70
|
1.1
|
1
|
16.9
|
748.0
|
0.277
|
|
1×95
|
1.1
|
1
|
18.2
|
950.9
|
0.210
|
|
1×120
|
1.2
|
1
|
20.5
|
1194.9
|
0.164
|
|
1×150
|
1.4
|
1
|
24.5
|
1490.2
|
0.132
|
|
1×185
|
1.6
|
1
|
25.6
|
1792.7
|
0.108
|
|
1×240
|
1.7
|
1
|
26.6
|
2298.9
|
0.0817
|
H1Z2Z2-K DC1500V Table of cable technical parameters
|
mm2
Number of cores × nominal cross-sectional area
mm2
|
mm
Nominal insulation thickness
mm
|
mm
Nominal sheath thickness
mm
|
mm
Approximate outer diameter of cable
mm
|
kg/km
Approximate weight of cable
Kg/km
|
Ω/km
Maximum DC resistance at 20ºC
Ω/km
|
|
1×1.5
|
0.7
|
0.8
|
5.4
|
42.8
|
13.7
|
|
1×2.5
|
0.7
|
0.8
|
5.8
|
55.5
|
8.21
|
|
1×4
|
0.7
|
0.8
|
6.4
|
71.2
|
5.09
|
|
1×6
|
0.7
|
0.8
|
7.0
|
92.5
|
3.39
|
|
1×10
|
0.7
|
0.8
|
8.0
|
138.4
|
1.95
|
|
1×16
|
0.7
|
0.9
|
10.3
|
211.0
|
1.24
|
|
1×25
|
0.9
|
1.0
|
12.3
|
314.6
|
0.795
|
|
1×35
|
0.9
|
1.1
|
14.4
|
425.0
|
0.565
|
|
1×50
|
1.0
|
1.2
|
14.9
|
565.8
|
0.393
|
|
1×70
|
1.1
|
1.2
|
17.7
|
779.2
|
0.277
|
|
1×95
|
1.1
|
1.3
|
19.2
|
993.2
|
0.21
|
|
1×120
|
1.2
|
1.3
|
21.5
|
1242.3
|
0.164
|
|
1×150
|
1.4
|
1.4
|
25.7
|
1558.5
|
0.132
|
|
1×185
|
1.6
|
1.6
|
27.2
|
1888.6
|
0.108
|
|
1×240
|
1.7
|
1.7
|
28.4
|
2411.0
|
0.0817
|
Product Display
Cable Construction
Conductor: Tinned Stranded Copper, comply wtih IEC60228+EN60228,
VDE0295,Class 5
Insulation: XLPE,TUV 2 PfG/1169
Insulation Color:Black or others
Jacket:XLPE,TUV2 PfG/1169
Conductor/Jacket Color:Black or Red
Technical Data
Rated Voltage:DC1500VTest Voltage: 6500VAC
Minimum Bending Radius:
Φ≤12mm 4 x overall diameter
Φ>12mm 10 x overall diameter
Rated Voltage:DC1500VTest Voltage: 6500VAC
Minimum Bending Radius:
Φ≤12mm 4 x overall diameter
Φ>12mm 10 x overall diameter
Operation characteristics
Operating temperature: -40°C – +125°C
Environ merit temperature: -40°C – +90°C
Designed service Life: > 25 years
Short-circuit operating temperature: 280 °C
Cable features: Anti ultraviolet, ozone resistant, cold resistant, salt fog resistant, LSOH (Low smoke zero halogen), inflaming retardant, environ mental friendly
Product type description
Executive standard: 2Pfg 1169/08.2007, EN 50618:2014
Rated voltage: ACO.6/1 kVz DC1500 V
Operating temperature: -40°C – +125°C
Environ merit temperature: -40°C – +90°C
Designed service Life: > 25 years
Short-circuit operating temperature: 280 °C
Cable features: Anti ultraviolet, ozone resistant, cold resistant, salt fog resistant, LSOH (Low smoke zero halogen), inflaming retardant, environ mental friendly
Product type description
Executive standard: 2Pfg 1169/08.2007, EN 50618:2014
Rated voltage: ACO.6/1 kVz DC1500 V
|
Serialnumber
|
ProductType
|
Executive standard
|
Number of cores
|
Specification (mm2)
|
|
1
|
PV1-F
|
2Pfg 1169/08.2007
|
1
|
1.5-35
|
|
2
|
H1Z2Z2-K
|
EN 50618:2014
|
1
|
1.5-240
|
More details of 4 mm solar cable
4 square single core photovoltaic cableNominal cross section: 4mm2
Model: PV1-F
Rated current: 55A
Number of cores: NO. 1
Conductor: Copper wire structure NO./mm 56/0.28
Outer diameter of conductor stranded: 2.60mm
Insulation Small wall thickness:0.5mm
Sheath small wall thickness: 0.5mm
Outer diameter of finished wire: 6.1±0.1mm
Conductor resistance (20ºC): ≤5.09Ω/km
Test voltage kV/min: 6.5/5Nobreakdown
Rated temperature: -40~+90ºC
Model: PV1-F
Rated current: 55A
Number of cores: NO. 1
Conductor: Copper wire structure NO./mm 56/0.28
Outer diameter of conductor stranded: 2.60mm
Insulation Small wall thickness:0.5mm
Sheath small wall thickness: 0.5mm
Outer diameter of finished wire: 6.1±0.1mm
Conductor resistance (20ºC): ≤5.09Ω/km
Test voltage kV/min: 6.5/5Nobreakdown
Rated temperature: -40~+90ºC
Conductor temperature: +120ºC
Reference short-circuit allowable temperature: 200ºC5S
Reference short-circuit allowable temperature: 200ºC5S
Service life:>25 years (-40~+90ºC)
Rated voltage: DC: 1.8kv ACU. /U:0.6/1kv
Working environment temperatureºC: -40~+90
Working voltage AC/DC (KV): 0.6~1.0/1.8
Weather resistance: UV
Flame retardant: single vertical burning (IEC60332-1)
Daylight resistance test: HD605/A1
Ozone resistance test of finished cable: EN50396
Smoke density: IEC61034, EN50268-2
Release of halogen acid: IEC670754-1 EN50267-2-1
Weight: 0.08Kg/m
Application

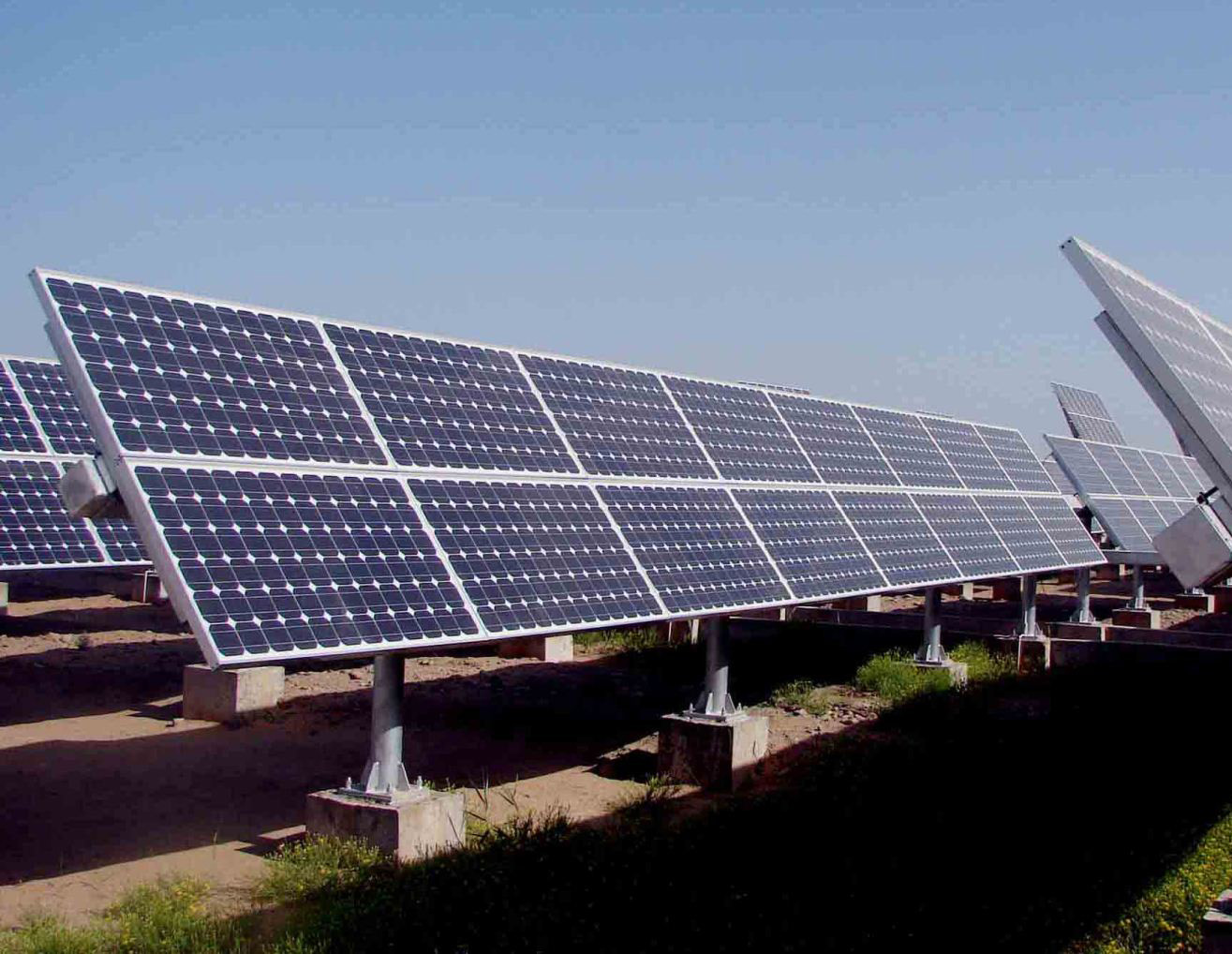

Applied in various types of photovoltaic power generation systems, for connection between photovoltaic panel modules, connections between photovoltaic strings, and connections between photovoltaic strings and DC distribution box (convergence box).
Solar cables applies to flexible single-core cables (cords) for use at the DC-side of photovoltaic systems with a maximum
permissible voltage of DC 1.8 kV (conductor/conductor, non-earthed system).The cables are suitable for use in safety class II. It is permitted to connect these cables as multiple-construction. The cables are intended to operate at ambient temperature until 90°C
Solar cables applies to flexible single-core cables (cords) for use at the DC-side of photovoltaic systems with a maximum
permissible voltage of DC 1.8 kV (conductor/conductor, non-earthed system).The cables are suitable for use in safety class II. It is permitted to connect these cables as multiple-construction. The cables are intended to operate at ambient temperature until 90°C
