Description
Specification
Basic technical parameters
1. Wire Diameter: 0.6-1.6mm
2. Wire Channel: 1
3. Wire Material: Low-Oil Oxygen or Oxygen-Free Copper
4. Coating Material: Nickel
5. Coating Thickness: Maximum Grade 27
6. Production Speed: 0-120m/min (Production Speed Varies with Coating Material)
2. Wire Channel: 1
3. Wire Material: Low-Oil Oxygen or Oxygen-Free Copper
4. Coating Material: Nickel
5. Coating Thickness: Maximum Grade 27
6. Production Speed: 0-120m/min (Production Speed Varies with Coating Material)
Production process
Pay-off (cage) – Electrolytic degreasing – Four-stage water rinse (the first stage is hot water rinse) – Acid electrolysis – Three-stage water rinse – Primary nickel plating – Recovery – Recovery – Three-stage water rinse – Hot water wash – Drying – Spool take-up machine
Note:
a) All tanks in this production line are covered and have a pre-reserved exhaust gas treatment line for easy connection to the customer’s exhaust gas blow-off line.
b) Each process exit of the production line is equipped with an air blower.
a) All tanks in this production line are covered and have a pre-reserved exhaust gas treatment line for easy connection to the customer’s exhaust gas blow-off line.
b) Each process exit of the production line is equipped with an air blower.

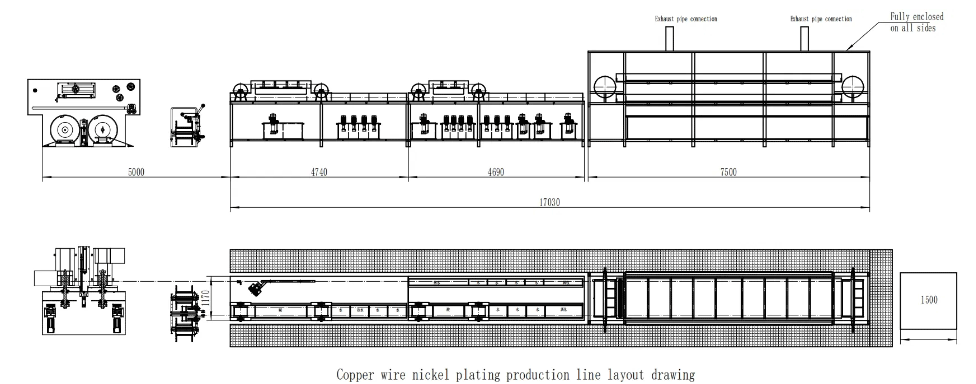

Layout drawing for reference
Equipment composition
(Custom configurations available upon request.)
|
No.
|
Machine Name
|
Quantity
|
Unit
|
|
1
|
Electrolytic degreasing
|
1
|
Set
|
|
2
|
Four-stage water flushing
|
1
|
Set
|
|
3
|
Acid electrolysis
|
1
|
Set
|
|
4
|
Three-stage water flushing
|
1
|
Set
|
|
5
|
Main nickel plating tank
|
1
|
Set
|
|
6
|
Level 2 recycling tank
|
1
|
Set
|
|
7
|
Three-stage water flushing
|
1
|
Set
|
|
8
|
Hot water sink
|
1
|
Set
|
|
9
|
Drying tank
|
1
|
Set
|
|
10
|
Cage-type take-up machine
|
1
|
Set
|
|
11
|
Double-reel take-up machine
|
1
|
Set
|
|
12
|
Electrical control box
|
1
|
Set
|
