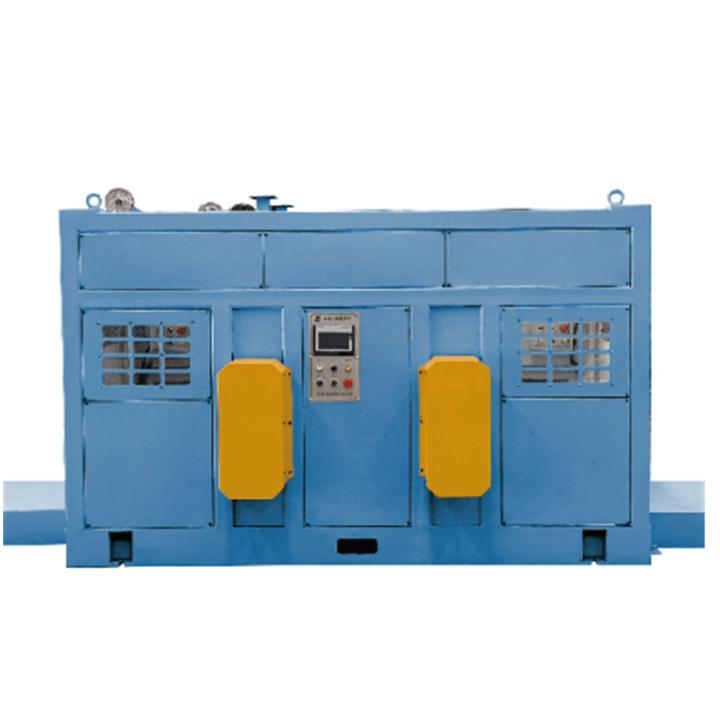

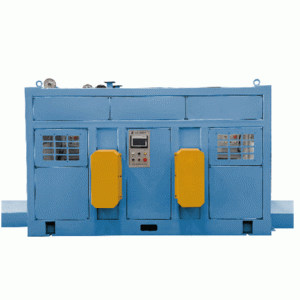

Single/ Double Bobbin Spooler
Description
Specification:
Single-bobbin spooler
| Model |
WS500 |
WS630 |
WS800 |
| Finished dia. |
Φ0.4-φ2.0 |
φ0.4-φ2.0 |
φ1.2-φ3.5 |
| Max.production speed |
1800m/min |
1800m/min |
1500m/min |
| Bobbin size |
PND400/PND500 |
PND500/PND630 |
PND710/PND800 |
| Max.capacity of spool |
300kg |
500kg |
1300kg |
| Bobbin loading type |
Pintle type |
| Clamping type |
Pneumatic type |
| Motor power |
11kW |
15kW |
30kW |
Double-bobbin spooler
| Model |
SP400 |
SP500 |
SP630 |
| Finished dia. |
φ0.4-φ2.0 |
φ0.4-φ2.0 |
φ1.2-φ3.5 |
| Max.production speed |
1800m/min |
1800m/min |
1500m/min |
| Bobbin size |
PND400/PND500 |
PND500/PND630 |
PND710/PND800 |
| Max.capacity of spool |
300kg |
500kg |
1300kg |
| Bobbin loading type |
Pintle type |
| Clamping type |
Pneumatic type |
| Motor power |
11kW |
15kWx2 |
30kWx2 |
